Research Diary: IP-Cameras Part 2

Hi everybody,
This is the second entry in our research diary on IP cameras. If you haven’t done so yet, you should read the first entry in advance. This time we focused more on analysis and exploitation.

Another entry vector

After running a vulnerability scan on both devices, it was revealed that the M1033 has multiple buffer overflow vulnerabilities (CVE-2012-5958 to CVE-2012-5965), which are readily exploitable via Metasploit. This gave us another shell (in addition to the root shell mentioned in the last post), though this time it was not a root shell. By using the find command, we searched for executables having the setuid or setgid bit set. We hoped to use one of those to escalate privileges. To do so yourself add the parameter -perm -4000 to find and it will search for files having the setuid bit set. If you try that on your own unix-like device, for example it should yield /bin/passwd which is perfectly reasonable as you’re able to change your password without being root.

However, we soon found that the system is running with BusyBox. Going in line with the deprecated Linux kernel 2.6 and boa webserver, the Busybox running on the system is version 1.1.3. According to the git repository the release of that version dates back to 2006. Even the latest firmware contains the same version. Although only few CVEs exist for BusyBox, the CVE-2011-2716 looked quite interesting: before version 1.20 (released 2012) BusyBox contained a vulnerability in its DHCP client, which could lead to code execution.

(Mis)using DHCP to attack

Again Metasploit seems to be our friend here, as it offers a DHCP server to exploit the ShellShock vulnerability. The problem with ShellShock is the fact that environment variables were evaluated and containing functions executed. So if an attacker was able to put arbitrary code into such environment variables, the code would execute every time bash is started. For example, this is possible via DHCP where the server can tell a client its hostname. The vulnerability in BusyBox is similar: the DHCP client accepts any hostname, domain or nisdomain without validating the input. Therefore, a DHCP server can send packets which contain shellcode to the according fields.
Unfortunately, the Metasploit module is a bit limited: the payload tries to put the shellcode into the crontab, which didn’t work in this case. To adapt the payload to our likings, we had to build our own DHCP server where we used scapy as a base. Scapy lets you easily build your own data packages with minimal effort and you don’t have to work on the bit level by yourself. For example, a DHCP offer packet could look like this:

dhcp_offer = Ether(src=localmac, dst="ff:ff:ff:ff:ff:ff") \
                             / IP(src=str(localip), dst=str(network.broadcast_address)) \
                             / UDP(sport=67, dport=68) \
                             / BOOTP(chaddr=[mac2str(dhcpsmac)], xid=localxid, yiaddr=str(clientip), siaddr=str(localip), op=0x02) \
                             / DHCP( options=[("message-type", "offer"),
                                              ("server_id", str(localip)),
                                              ("lease_time", lease_time),
                                              ("subnet_mask", str(network.netmask)),
                                              ("router", str(localip)),
                                              ("hostname", myhostname),
                                              ("NIS_domain", nisdomain),
                                              ("domain", domain),
                                              ("param_req_list", "pad"),

Now with full control over the payload it seems that BusyBox is not inflicted by the ShellShock vulnerability. Still the camera accepts our arbitrary packets and puts them into the according variables. We were able to verify this with the above UPnP exploit:

> hostname
ls >> /tmp/ernw.dhcp
> uname -a
Linux echo "ernw" >> /tmp/ernw.dhcp 2.6.35 #1 PREEMPT Tue Sep 11 09:48:42 CEST 2012 armv6l unknown

Unfortunately at this point we were not able to bring our code to execution.

Honorable Mentions

Further vulnerability research revealed a command injection in the cameras web interface. It was reported and disclosed by OrwellLabs who seem to do quite some research on IP cameras. The advisory can be found here. We’d like to point out the huge list of affected devices/firmware versions as well as the timeline with Mirai and its recent derivates in mind.

TL;DR: yet another root shell

ONVIF for the Masses

The Open Network Video Interface Forum was started in 2008 with the goal to specify and implement a global standard for the interface of IP-based physical security products.
The core standard can be found here and specifies the implementation of a SOAP web service. In the case of the cameras it is used to retrieve video feeds as well as configuring the device. There are already free and commercial solutions to manage IP surveillance devices out there which shows that this interface is not only relevant in our lab environment. But while testing the web service effectively we encountered some minor obstacles.
As this web service uses a digest authentication based on a timestamp and a random nonce it is rather annoying to run semi-automated tests against the implementation. Which is why the digest calculation had to be automated. Fortunately, the Portswigger Burp Suite offers a well-documented extension interface so a first quick and dirty implementation was done in no time. But what’s the point in changing the extension source code every time you need to change credentials or the extension’s scope which is why we dove into the wonderful mysteries of GUI programming. The Burp extension interface offers several language environments. Namely Java, Ruby and Python. As Python is our weapon of choice most of the times, it was here as well. And if you never experienced the joy of debugging GUI written by hand rather than a GUI builder let us tell you that it is even way more adventurous while using a Java library out of a Python interpreter. But eventually we came to a usable outcome:

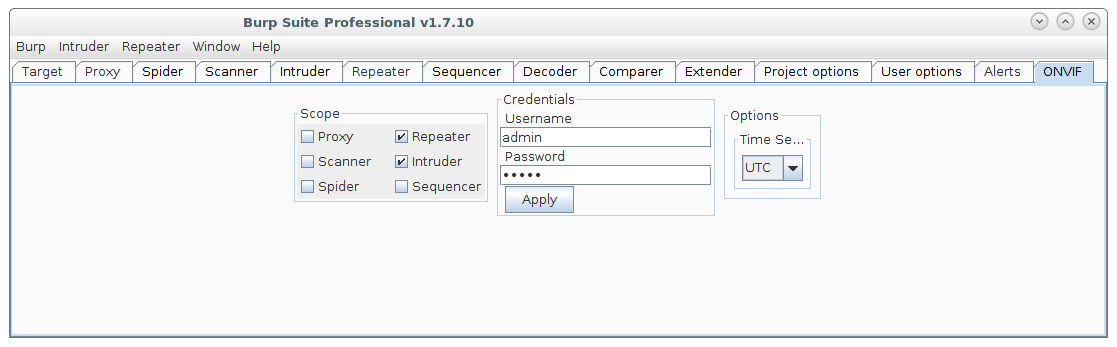

burp onvif extension
Of course this could be done in a way simpler way, e.g. with the existing Python Scripter extension mentioned in this blog post.
But the goal here was not only to build a usable Burp extension, but maybe develop a blank canvas to build your own extensions with a predefined set of GUI elements to choose from in a hurry. We think it is a good idea to aid you guys out there in building your own extensions for the special problems a web application pentester may encounter and can’t find a satisfying solution for.
The ONVIF extension as well as the canvas will be available at our github in the near future.
On a side note we found out, that at least the implementation of AXIS, has a replay attack prevention. This means your timestamp in the authentication header has to be within 5 seconds of the camera’s clock. So in order to be able to authenticate with the SOAP service one has either to be in sync with the camera or disable the replay protection, which can be done in the web interface (Setup > SystemOptions > Advanced > PlainConfig > Webservice > “Enable replay attack protection”). If, for whatever reason, you do not have access to the web interface you can check the time set up on the camera via the GetSystemDateAndTime call which does not need any authentication.

so long
Benjamin and Pascal


  1. Maybe you were unable to exploit ShellShock via CVE-2011-2716 because the camera doesn’t run bash? (And it seems that these options weren’t passed unsanitized to some shell script.)

    I haven’t seen (modern) embedded device with bash so far (give or take some network appliances based on x86 maybe). That’s understandable, since BusyBox contains built-in ‘ash’ shell already.

    (I’m working on getting access to two Gigaset phones – DX600A DECT Linux-based ISDN base station and SL910H touchscreen DECT handset, so far without much luck)
