Your Android Bluetooth Traffic Captures Should Be Live

In this post I want to talk about a very essential part of my workflow when dealing with Bluetooth devices, particularly IoT devices with a corresponding mobile app: Live capture of Android Bluetooth traffic with Wireshark.

Before you stop reading because you think you know how to do this already, the method does not involve pulling bug reports off your phone, and it does not require root. And most importantly it gives you a live packet log in Wireshark.

If I got you interested, but you really don’t care for the background, you can jump straight to the recipe for Android before and after 16. If you want to know why there is no solution for Android 16 I’m afraid you have to read the whole thing.

A list of places I checked for the correct solution in vain:

  • ChatGPT
  • Claude
  • Gemini
  • The first page of Google results
  • The first page of Bing results
  • Asked my coworkers
  • That one book on Android security I always meant to read

This is not arcane knowledge, and I am pretty sure if you hard-press the LLM of your choice it will give you the answer. But you would have to know there is a better way. With this post I am mainly hoping to make the best answer to the problem also the first one you find, because that’s what people end up doing.

The default

Let’s start with the popular answer first, because it’s actually pretty close to the correct one. What it gets right is that you need to enable Enable Bluetooth HCI snoop log in the Android Developer options.

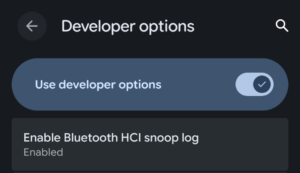

The “Enable Bluetooth HCI snoop log” setting in Android’s Developer Options

Enable HCI Logs in Android

This will enable an Android mechanism that logs all HCI traffic to a dump file in the btsnoop format that can actually be read by Wireshark and the like. Now this sounds great, but the file is normally not readable on non-rooted Android devices. That is why the popular method goes on to trigger an Android bug report via ADB, which does not require root privileges. The result is a zip file that bundles many system logs and configs and among them also a copy of the aforementioned HCI log. So simply unzip the bug report, open the log file in Wireshark and you’re done.

Taking a bug report does however take about a minute and what you will get is only a static snapshot of all HCI traffic captured until this point. This is especially inconvenient if you try to match user interactions or other events to corresponding Bluetooth traffic. You would have to rely on timestamps in the log for that. That’s annoying. I like my logs like I like my Gagh: Live and fresh!

Live is always better

Of course the Android developers thought so too and – to my knowledge back with Android 5 (that was 2014) – introduced a better way. They simply livestreamed the btsnoop log to a listening socket on localhost. All you needed to do to get hold of it was use ADB to get a TCP port forwarding from your host PC to the Android localhost port 8872.

However since Wireshark doesn’t do live decoding of the btsnoop format you would have to dump everything that comes over this socket in a file and open that in Wireshark. That’s arguably better than pulling bug reports but still annoying. Fortunately, Wireshark ships with the androiddump extcap plugin, that does all the legwork for us. It forwards the port, reads from the socket, parses the btsnoop PDUs and live streams HCI traffic in our Wireshark packet log. And all it needs is a working ADB connection.

Recipe

So the correct solution in a nutshell was:

  • Setup ADB
  • Turn on Enable Bluetooth HCI snoop log in the Android Developer Options
  • Ensure that adb-server is started and everything works e.g. by running adb shell
  • Start Wireshark
  • Capture on the Android Bluetooth Btsnoop Net interface

It’s as simple as that.

So why the heck would people do the bug report dance? Well, I really don’t know why they did so in the past. But more recently this method has had a major caveat; it does not work with Android 16.

Android 16: when it broke

As part of Android’s gradual migration from the old Bluetooth stack Fluoride to the new Gabeldorsche the btsnoop net functionality was disabled for Android production builds. To my knowledge, the whole ordeal was not documented anywhere, but I believe what happened was: At some point the new Gabeldorsche implementation was adopted but immediately disabled because it hadn’t undergone a necessary security audit yet. And it remained disabled for all of Android 16’s releases. Until today I know of no way to use the feature on non-rooted Android 16 installations. I became pretty frustrated with the fact that it just suddenly broke with an update of my testing phone with no explanation. So I dug around the AOSP code and adjacent resources. Finally, on the AOSP Gerrit instance, I found not only a code comment that explained why the socket was disabled, but also a short conversation on the topic. To my surprise I was allowed to write comments as well and even got a response that promised the feature will be enabled again in a future release. It would be behind a system property, but that seemed reasonable to me.

Android 17: back again

When Android 17 came along I was more than happy to see that the Android team had kept their word and the btsnoop socket was indeed back! When I checked the Developer options I found the newly added sub menu Bluetooth that had the long-awaited setting Enable Bluetooth HCI snoop log socket. Toggling it brought back the live logging feature in Wireshark just like it was before Android 16.

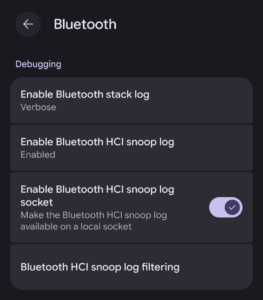

The new Bluetooth Menu in Android’s Developer Options

New Android Bluetooth Developer Options

A new Recipe

So for Android 17 the solution just requires you to flip one additional switch:

  • Setup ADB
  • Turn on Enable Bluetooth HCI snoop log in the Android Developer Options Bluetooth sub-menu.
  • Turn on Enable Bluetooth HCI snoop log socket in the Android Developer Options Bluetooth sub-menu.
  • Ensure that adb-server is started and everything works e.g. by running adb shell
  • Start Wireshark
  • Capture on the Android Bluetooth Btsnoop Net interface

With that I can happily live capture Bluetooth traffic on Android again and no longer have to stand the smug smile on the faces of my colleagues working with iOS and its pretty decent packet logger.

If you are interested in Bluetooth tooling and traffic capture check out my post on how to get HCI logs of bumble scripts in Wireshark.
Or if you rather have us look at your Bluetooth devices than doing it yourself, talk to us.
